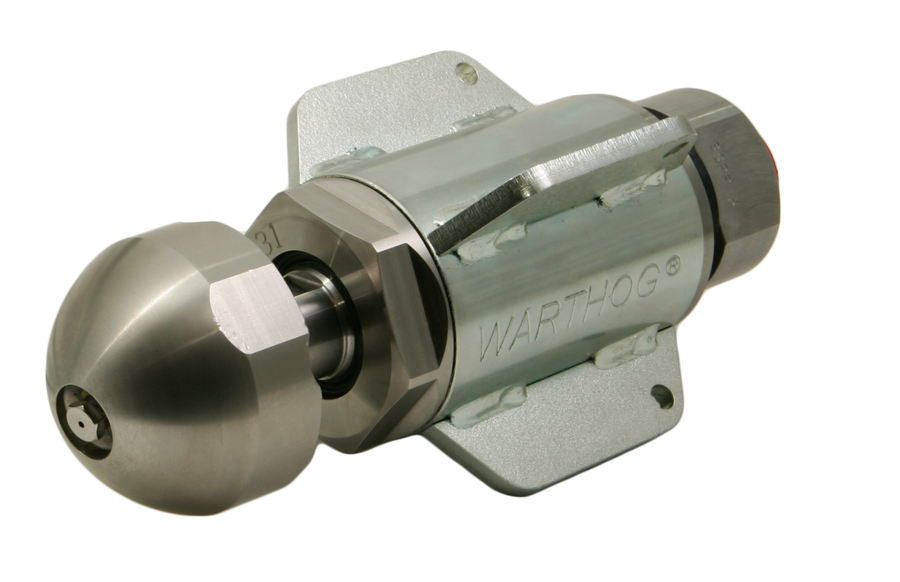

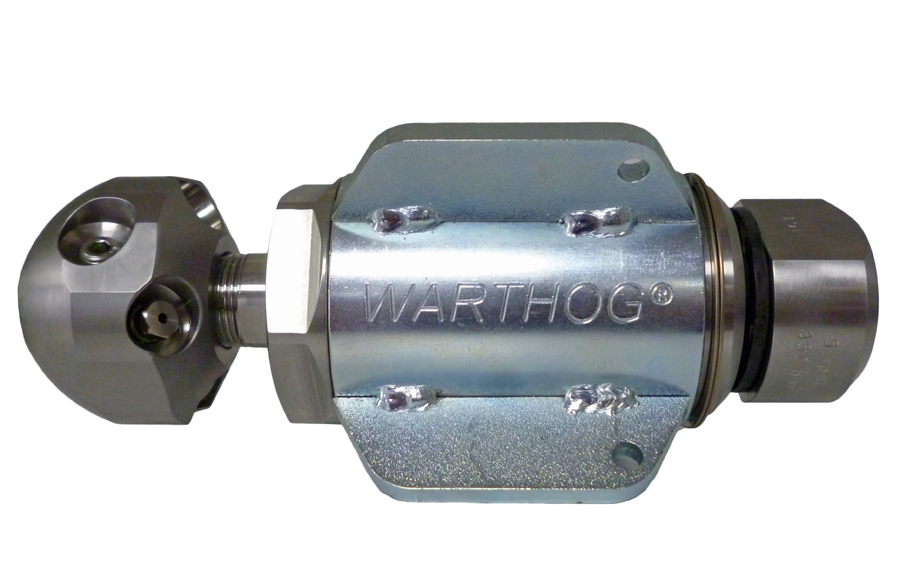

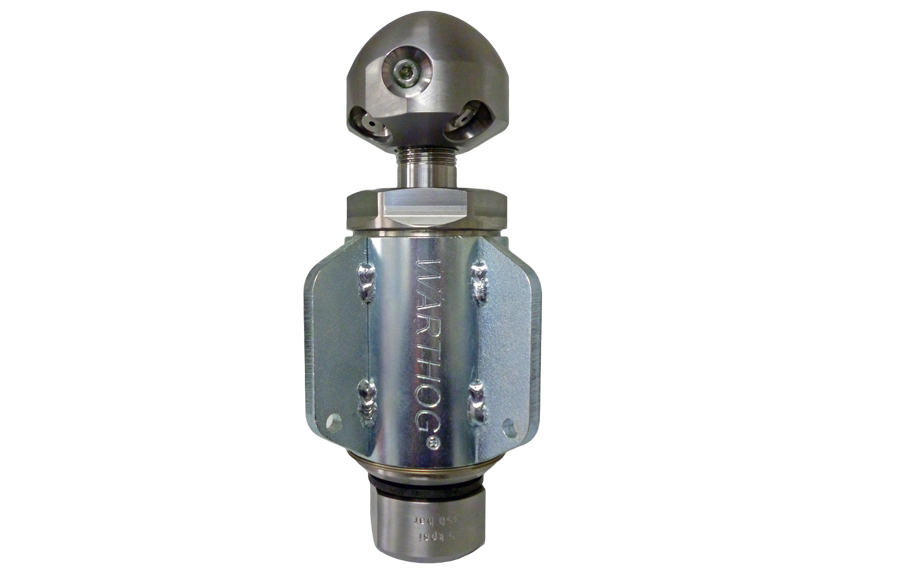

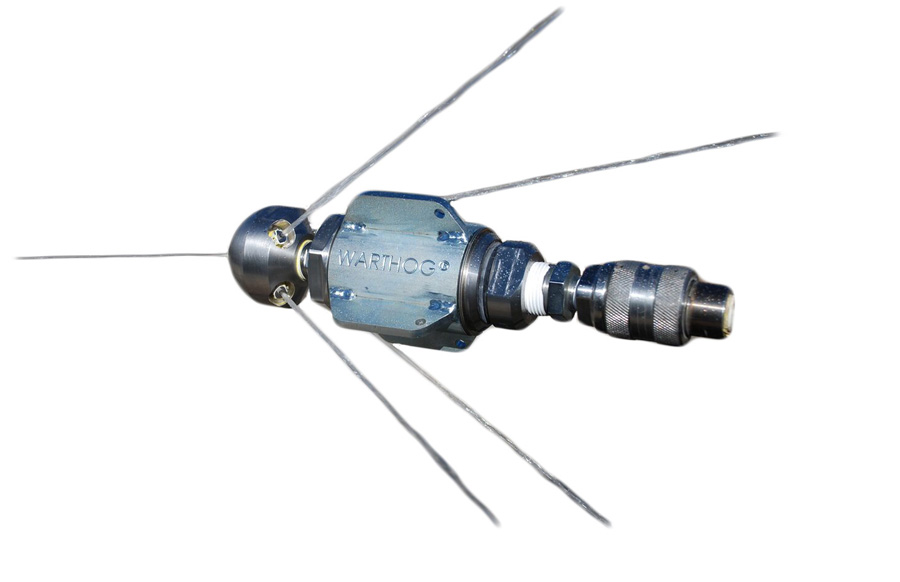

The Warthog WG-1 is the proven choice for municipal, industrial and commercial drain cleaning applications. Predominately used in large combination trucks with 1” hose, the WG-1 is field-maintainable for low cost of ownership and can be fitted with replaceable AP2 nozzle tips sized to maximize pump efficiency and effectiveness. Features: Controlled rotation — Slower dwell time allows jets to penetrate deeper through deposits
Multiple head options — Customize tool for unplugging, descaling or manhole cleaning
Highest quality jets — Hardened stainless steel orifices resist cracking and scratching
Optional descaling head available

Tool Family:

• Warthog Classic
• Tool Model: WG-1
• Pipe Size: 8-36 in. 203-914 cm
• Pressure Range: 1500–5k psi 100–350 bar
• Flow Range: 50-80 gpm 190-300 l/min
• Flow Rating: 4.6 Cv
• Rotation Speed: 150-300 rpm
• Pulling Force: 70-100 lb 310–450 N
• Inlet Connection: 1 NPT or BSPP
• Nozzle Ports: 5 x 1/8 NPT
• Diameter: 4.8 in. 122 mm
• Length: 9.1 in. 231 mm
• Weight: 10.9 lb 4.9 kg

Please contact the Whale Parts Team to provide pump flow, pressure, hose length and diameter so that we can set nozzle parameters correctly.

Warthog Classic Nozzle Demo
