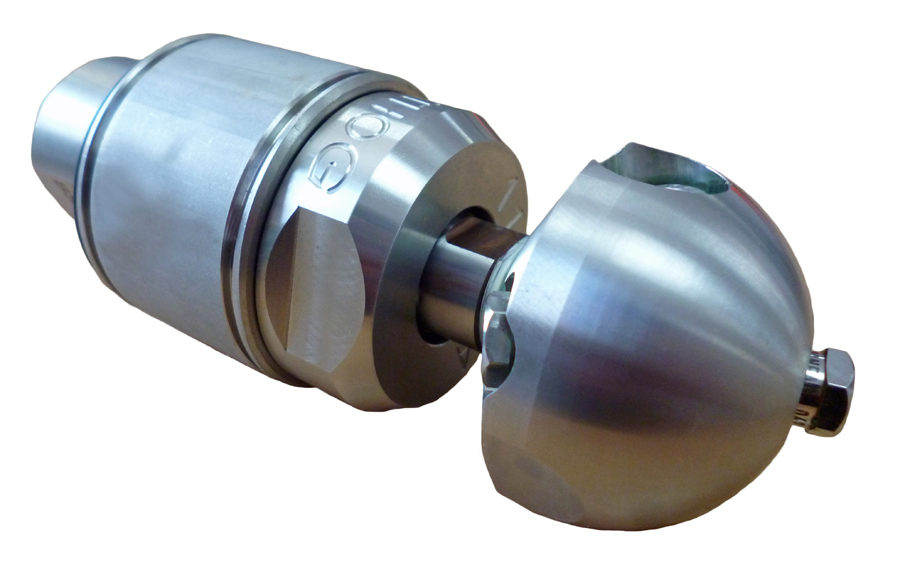

The Warthog WS-1/2 is designed to handle 4”-8” lines and is most commonly used with trailer jetters. It is used to clean lines in restaurants, hospitals, multi-story apartment buildings, residential, and other applications. Easily removes grease, cuts roots, ice and soil blockages.

Tool Family:

• Warthog Classic
• Tool Model: WS-1/2 Classic
• Pipe Size: 4-8 in. 102-204 mm
• Pressure: Range 1500–5k psi 100–350 bar
• Flow Range: 8-20 gpm 30-76 l/min
• Flow Rating: 0.75 Cv
• Rotation Speed: 200-500 rpm
• Pulling Force: 9-27 lb 40-120 N
• Inlet Connection: 1/2 NPT or BSPP
• Nozzle Ports: 3 x 1/8 NPT
• Diameter: 1.7 in. 44 mm
• Length: 4.4 in. 112 mm
• Weight: 2.98 lb 1.33 kg

Please contact the Whale Parts Team to provide pump flow, pressure, hose length and diameter so that we can set nozzle parameters correctly.

Warthog Classic Nozzle Demo
