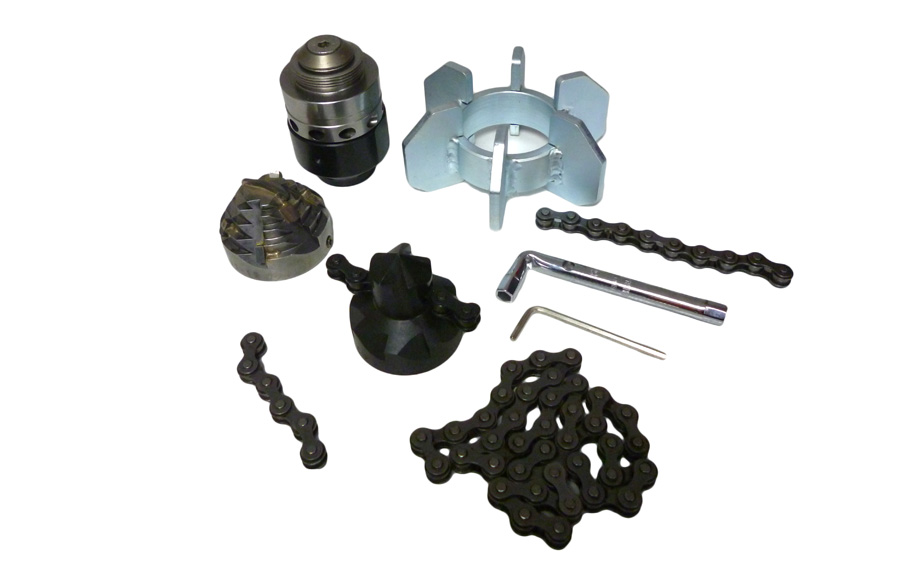

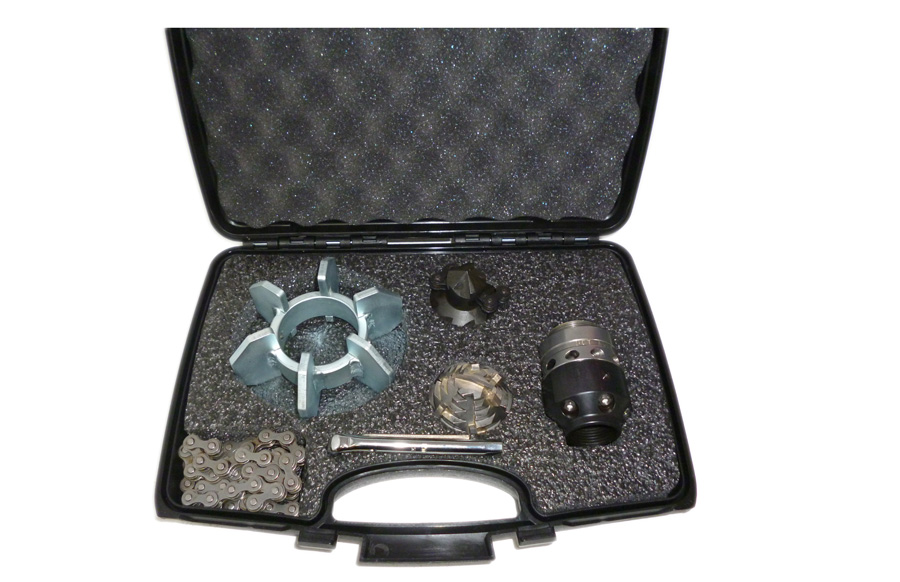

Avian 3/4" Turbine Nozzle Kit Plastic case with DN50 3/4" nozzle, carbide milling head, chain supporting head for root removal, centralizer for DN 125. Please contact the Whale Parts Team to provide pump flow, pressure, hose length and diameter so that we can set nozzle parameters correctly.

Applications:

• Removal of roots,
• rust,
• bad liners.
• Length of chains must be related to pipe DN.

Nozzle with steel and carbide head:

• blocked pipes with partial or total hard obstructions (stones, limestones, iced pipes)
• 58x83mm
• Weight 1kg
• Rotating Jets 3x90°
• Rear Jets 4x20°
• Max Pressure 250 Bar
• 80-240 lt/min
• Working DN 80-250mm

   Please contact the Whale Parts Team to provide pump flow, pressure, hose length and diameter so that we can set nozzle parameters correctly.

Avian Turbine Nozzle Demo
