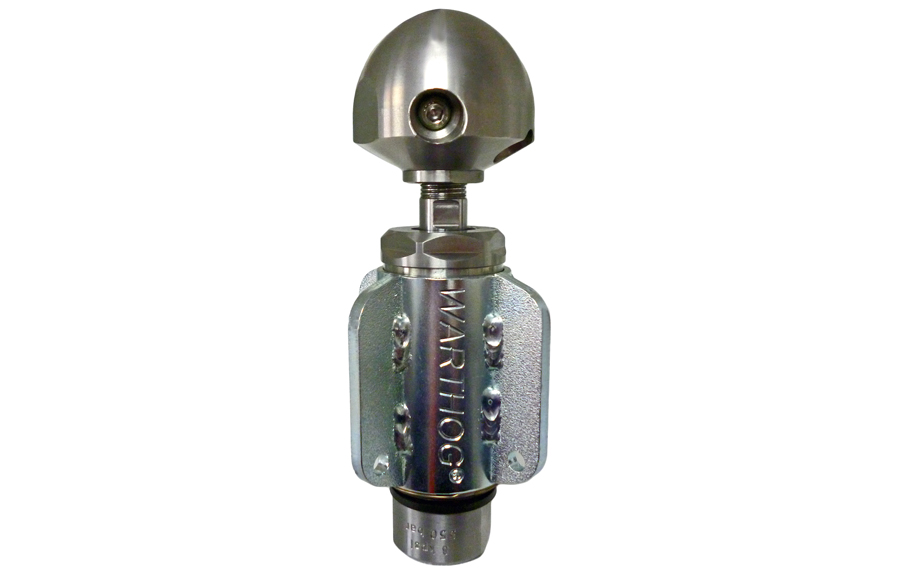

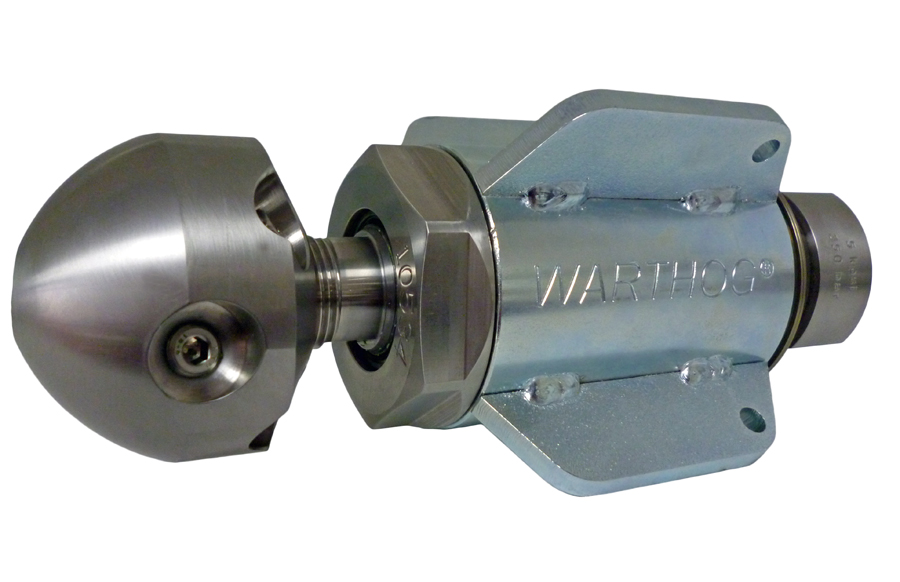

The Warthog WH-1/2 and the WH-3/4 are the same tool offered with different inlet ports, either 1/2” or 3/4” NPT or BSPP. These tools are most commonly used with small capacity combination trucks and large trailer jetters. Descaling Heads are available for both models.

Optional descaling heads available.

Tool Family:

• Warthog Classic
• Tool Model: WH-3/4 Classic
• Pipe Size: 6-18 in. 152-457 mm
• Pressure Range: 1500–8k psi 100–550 bar
• Flow Range: 10-50 gpm 40-190 l/min
• Flow Rating: 3.0 Cv
• Rotation Speed: 150-300 rpm
• Pulling Force: 18-50 lb 80-220 N
• Inlet Connection: 3/4 NPT or BSPP
• Nozzle Ports: 3 x 1/8 NPT
• Diameter: 3.4 in. 86 mm
• Length: 7.5 in. 191 mm
• Weight: 4.7 lb 2.1 kg

Please contact the Whale Parts Team to provide pump flow, pressure, hose length and diameter so that we can set nozzle parameters correctly.

Warthog Classic Nozzle Demo
