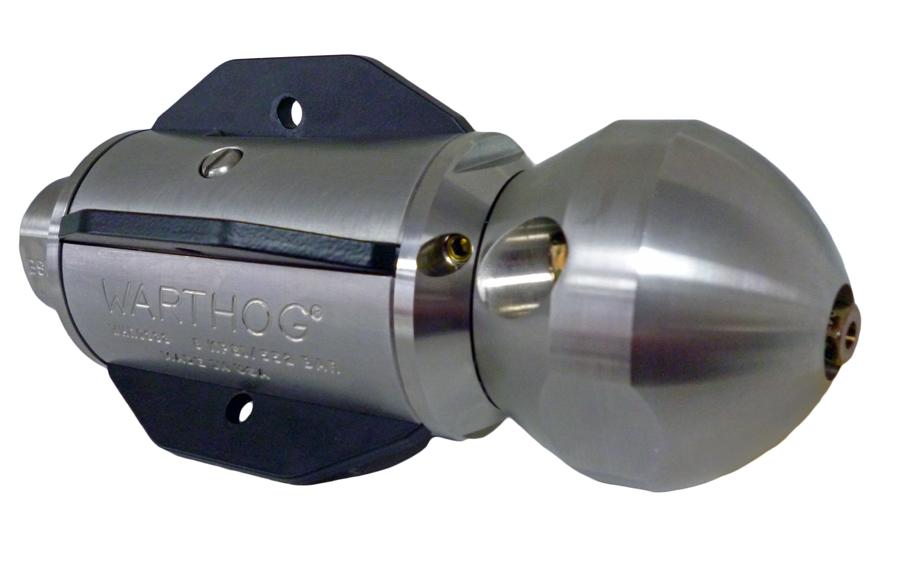

The Warthog WHR Magnum is designed for mid-size pipes and lines, with the proven power and durability of the Magnum line of sewer tools.
Features:
Latest seal technology effectively handles dirty or recycled water
Optimized speed control mechanism extends maintenance intervals
Flush style head protects front shaft seals for longer fluid life
Carbide nozzles generate higher quality jets
Streamlined design improves forward and reverse movement through pipe
Hardened steel centralizer with 4x longer life
Independently replaceable fins can be easily replaced as wear occurs without opening tool body

Tool Family:

• Warthog Magnum
• Tool Model: WHR
• Pipe Size: 6-18 in. 152-457 mm
• Pressure Range: 1500–8k psi 100–550 bar
• Flow Range: 14-50 gpm 60-190 l/min
• Flow Rating: Rotation Speed 150-400 rpm
• Pulling Force: 30-90 lb 13-41 kg
• Inlet Connection: 1/2 NPT or BSPP, 3/4 NPT or BSPP
• Nozzle Ports: 5 x 1/8 NPT
• Diameter: 3.625 in. 92 mm Length: 7.25 in. 184 mm
• Weight: 6.75 lb 3 kg

Please contact the Whale Parts Team to provide pump flow, pressure, hose length and diameter so that we can set nozzle parameters correctly.

Warthog Magnum Nozzle Demo
