Mistral 360 Vacuum Pump
Anti – Clockwise
Mistral 360 Vacuum Pump supplied Without oil tank.
- Anti-Clockwise Rotation
- Shaft Diameter: 30mm
- Keyway Size: 8mm x 4mm
- 5 Blades
- Inlet/Outlet Port 90mm
- 215CFM at 1000 RPM
- Max Speed 1600RPM
- Mechanical Lubrication Feeding Through Bearings To Cylinder
- Oil Tank Capacity 5.68 Litres
- Bearing Arrangement: Roller Bearing at drive end with ball bearing at rear

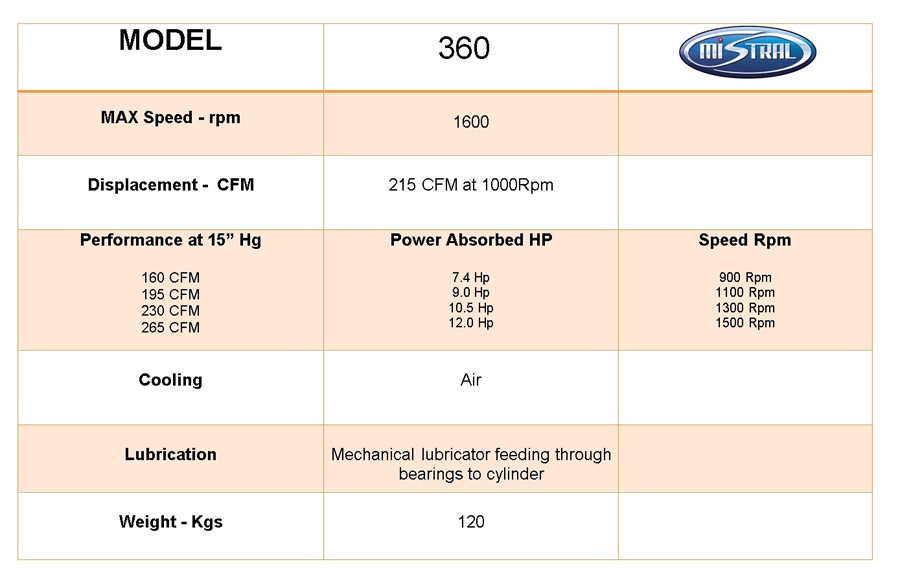

See additional images for pump spec.
