PLEASE NOTE THIS PUMP IS NO LONGER AVAILABLE IT HAS BEEN REPLACED BY MW SERIES JETTING PUMPS. PARTS ARE STILL AVAILABLE.

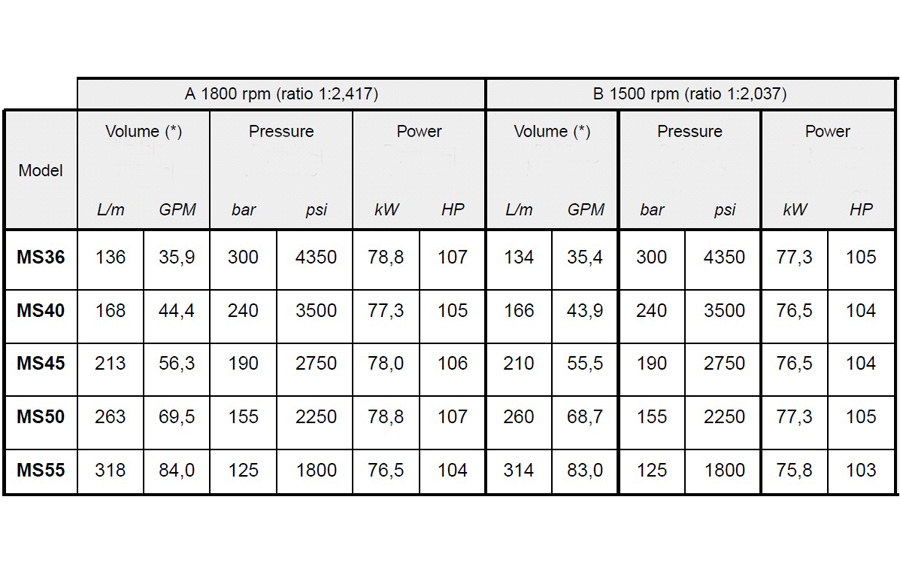

Construction: Triplex plunger pump, available in 5 versions gear box available on left or right side in 10 different positions double pressure packing vertical fitted valves splash lubricated power end available without gear box

• 190 Bar
• 2700 Psi
• 76.5 kW
• 210 Lpm
• 106Hp
• 750 RPM
• Shaft Male – 50mm
• Width 442mm
• Height 303mm
• Length 704mm
• Inlet – Flanged – Kits required to convert to 2 x 1/2” BSPT Female
• Kit also required for blanking off one of the inlets if needed.
• Outlet – 1 1/4” BSPT Female
• Manifold – Nickel treated cast iron
• Max fludid temp 60c

*Bare shaft pump as standard;. Optional gearbox available – 1500 or 1800 rpm When using with water temperatures over 40c please contact us. Versions available with stainless steel manifolds & for use with hot water to 70c.
