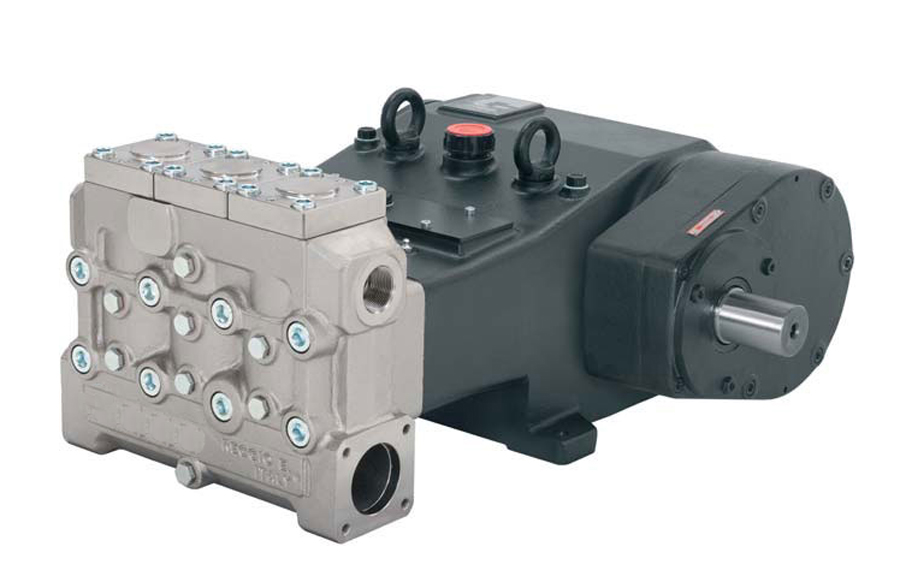

MS55 Jetting Pump

Product Code: MS 55 Pump

PLEASE NOTE THIS PUMP IS NO LONGER AVAILABLE IT HAS BEEN REPLACED BY MW SERIES JETTING PUMPS. PARTS ARE STILL AVAILABLE.

Construction: Triplex plunger pump, available in 5 versions gear box available on left or right side in 10 different positions double pressure packing vertical fitted valves splash lubricated power end available without gear box

125 Bar
1800 Psi
75.8 kW
314 Lpm
104Hp
750 RPM
Shaft Male – 50mm
Width 442mm
Height 303mm
Length 704mm
Inlet – Flanged – Kits required to convert to 2 x 1/2” BSPT Female
Kit also required for blanking off one of the inlets if needed.
Outlet – 1 1/4” BSPT Female
Manifold – Nickel treated cast iron
Max fludid temp 60c

*Bare shaft pump as standard;. Optional gearbox available – 1500 or 1800 rpm When using with water temperatures over 40c please contact us. Versions available with stainless steel manifolds & for use with hot water to 70c.
